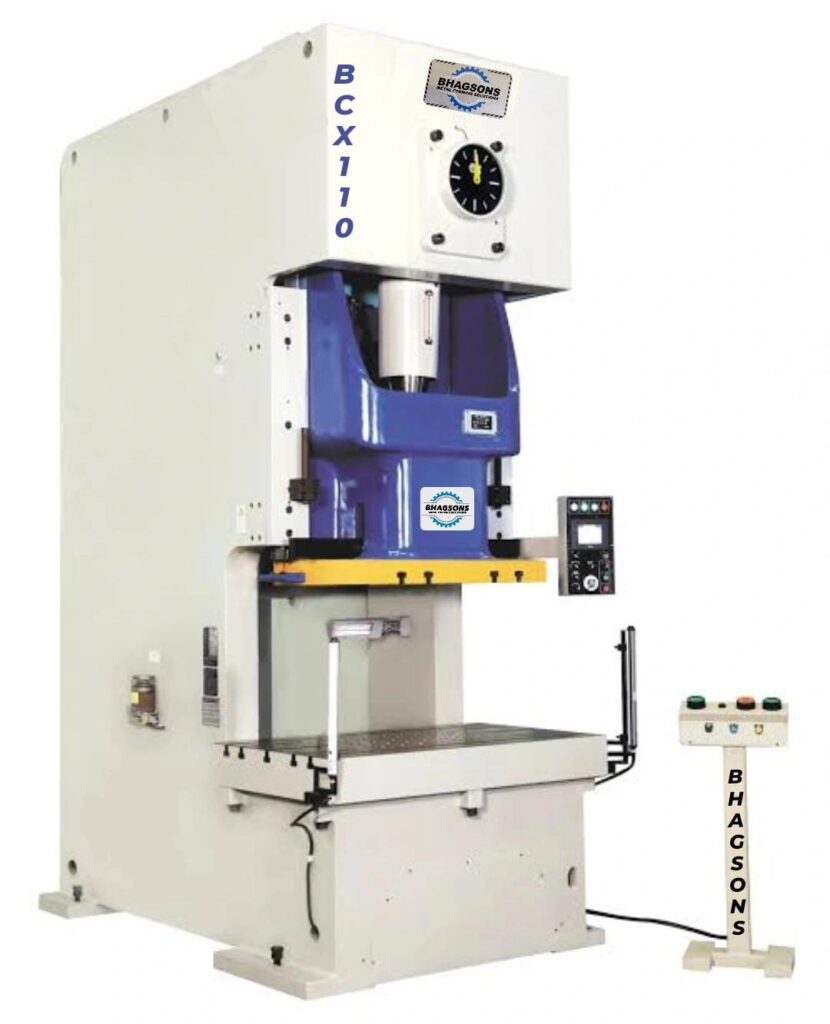

Cross Shaft Power Press Machine

Products

C frame power press
H frame power press
C Frame High Speed Pneumatic Power Press
Under crank shearing machine
Over crank shearing machine
Hydraulic press machine
Cross Shaft power press

Contact Us

Frame Construction

Cross Shaft Press fabricated from 2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed. Frame is machined on imported horizontal boring machine for high accuracy .

Slide

Slide is made of high grade heavy duty cast iron and properly seasoned. They are perfectly
aligned, to BED . to obtain high accuracy and precession press operation.

Long Gibs

HYLUM lining fixed directly on GIBS. lining can also maintain high accuracy and extend
the life of tooling.

Flywheel

Properly sized flywheel is made of cast iron. Fly wheel is properly balanced for smooth
running.

Crank Shaft

Crank shaft is made up of graded material . for its durability .

Motorized Slide Adjusting Device

The Motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It provides stable positioning accuracy and quick adjustment.

Auto Lubrication System

The auto lubrication system with default monitor ensures high reliable operation.

Die Height Indicator

Motorized slide adjusting devise fitted with 0.1 mm increment digital die height indicator.

Hydraulic Overload Protector

The Hydraulic overload protector is installed to prevent the overloading from exceeding the rating capacity tonnage and protect press and tooling from damage. The simple resetting process makes the restart operation easily.

Pneumatic Clutch

The fail-safe, pneumatically operated clutch brake combination is designed to provide
excellent slide motion control even at high speeds. Adequate energy required for blanking
operation is ensured by optimised design of the flywheel.

Cross Shaft Powee Press Machine

Capacity	25 TON	35 TON	45 TON	63 TON	80 TON	110 TON	160 TON
Bed Size (FxB)(LxR)	380 X 700	410 X 780	440 X 840	500 X 910	600 X 1000	700 X 1100	750 X 1200
Stroke Length	90 MM	100 MM	100 MM	110MM	125 MM	125 MM	159 MM
SPM	70	70	60	60	60	50	45
Shut Height	225	250	275	300	325	350	400
Slide Adjustment	50	50	60	70	80	90	100
Punch Hole	40	50	55	65	75	90	100
Bed Thickness	75	85	110	125	140	140	150
Floot To Top Of Bed	800	800	800	850	900	900	900
Motor Req	3H.P	5H.P	5H.P	7.5H.P	7.5H.P	10H.P	15 H.P
