Baljeet Industries

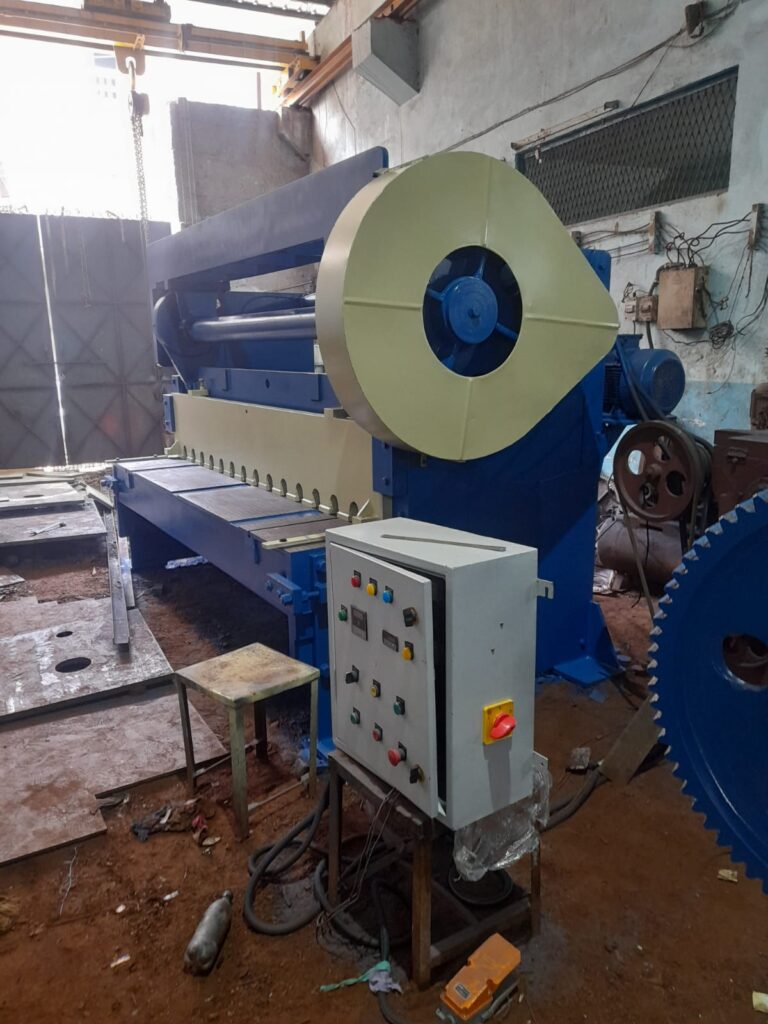

Over Crank Mechanical Shearing Machine

Standard Equipment

  • Fly Wheel & Gear Guard
  • Self-Lubrication System
  • A Pair of Four Edge Shear Blade
  • Front Gauge
  • Back Gauge (Manual Operated)

Optional Equipment

  • Electric Foot Switch
  • Pneumatic Clutch
  • Motorized Back Gauge
  • Automatic Lubrication System
  • Stroke Counter
  • MOTOR , STARTER ,V BELTS ,MOTOR PULLEY

Our Over Crank Mechanical Shearing Machine is engineered for precision and efficiency, catering to diverse industrial applications. As a trusted supplier, we offer robust machines designed to deliver superior performance with minimal maintenance. The machine features a sturdy construction, ensuring longevity and reliability under heavy-duty operations. Its advanced over crank mechanism provides smooth and accurate shearing, enhancing productivity while maintaining high-quality cuts. Equipped with user-friendly controls, it allows for easy operation and adjustment, making it ideal for both novice and experienced operators. Safety is paramount, and our machine includes essential safety features to protect operators during use. Whether you need to cut metals of various thicknesses or handle high-volume production, our Over Crank Mechanical Shearing Machine is the perfect solution, combining efficiency, durability, and precision to meet your industrial shearing needs. Partner with us for top-notch machinery that boosts your operational capabilities.

Frame

The Frame is rigidly constructed from 2062 prime plates .we use mig welding . for joining of plates . we cut machine frame on cnc gas cutting machine . bed is constructed box type . for its longer life .

Hold Down System

Spring Loaded mechanical Hold Down system are provided to hold the sheet
securely to avoid slipping and bowing. The pressure of each hold down unit is ample
to securely hold even shorter pieces under one hold down. The increase/decrease
of pressure of hold down is adjusted through springs .

Knives

Each machine is provided with high quality single segment, D2 (HcHcr) BLADES for
enhanced tool life. The knives blades are four edged.

Mechanical Back Gauge

Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing the Power Press machine.

Flywheel

Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running.

Lubrication System

Single shot lubrication provides oil to all the lubrication points, where necessary, thus all bearing parts and guide surface, etc.

Over Crank Mechanical Shearing Machine
(Technical Specification )

CUTTING CAP. IN (MS) L. x THK. STROKE PER MINUTE TABLE HEIGHT TABLE WIDTH FRONT GAUGE REAR GAUGE MOTOR H.P./K.W BLADE LENGTH WIDTH X THICK LxWxH APPROX WEIGHT
900 X 6 40-45 850 400 600 550 5H.P 940X 75 X 18 2400 KG
1250 X 6 40-45 850 400 600 550 5H.P 1290 X 75 X 18 330 KG
1600 X 6 40-45 850 430 600 550 7.5H.P 1600X 75 X 18 4400 KG
2000 X 6 40-45 850 475 600 550 7.5H.P 2050 X 75 X18 5000KG
2500 X 6 40-45 850 475 600 550 10 H.P 2540 X 75 X 18 5600 KG
3000 X 6 40 850 500 600 550 12.5H.P 3100 X 75 X 18 6500 KG
1600 X 8 35 -40 850 500 600 550 10 H.P 1600X 100 X 25 5500 KG
2000 X 8 35 -40 850 500 600 550 15 H.P 2050 X 100 X25 6200 KG
2500 X 8 35 -40 850 500 600 550 15 H.P 2540 X100 X 25 7000 KG
3000 X 8 35 850 500 600 550 20 H.P 3100 X 100 X 25 8200 KG
1600 X 12 30-35 850 600 600 550 15H.P 1600 X 100 X 25 7500 KG
2000 X 12 30-35 850 600 600 550 15H.P 2050 X 100 X25 8200 KG
2500 X 12 30 850 600 600 550 20H.P 2540 X 100 X 25 9000 KG
